Black Nut 1P 6 Pin Electrical Connector Round Type 100 G Shock Resistance

Name: Black Nut 1P 6 Pin Electrical Connector Round Type 100 G Shock Resistance
Brand: MOCO
Price: 1 USD

China Black Nut 1P 6 Pin Electrical Connector Round Type 100 G Shock Resistance wholesale

Brand Name : MOCO

Model Number : 1PZ2G06CLLN

Certification : UL/CE/RoHs/ISO9001

Place of Origin : Shezhen, China

MOQ : 10pcs

Payment Terms : T/T, Palpay,, Western Union

Supply Ability : 200000pcs/month

Delivery Time : 7-10 working days after simple confirmation

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

P/N : 1P 6 pin female circular plastic push pull connectors with black nut

pin : 6 pin

gender : female

insulator material : PPS

Endurance (Shell) : 5000 mating cycles

Vibration : 15 g [10 Hz - 2000 Hz]

Shock Resistance : 100 g [ 6 ms]

Material : plastic

Contact Now

1P 6 pin female circular plastic push pull connectors with black nut

Main features:

Smart push-pull self-latching system;

Different keying to avoid cross mating

Wide Choice of colors for easy identification ( blue,
yellow, red, black, grey, green);

MOCO P series connectors are plastic Push-Pull connectors. They are widely used in medical devices, such as patient monitor, respirator,anesthetic machine.

T1 is a plastic straight plug, usually used for endoscopic technology, infusion pump , holter record and EMG system.

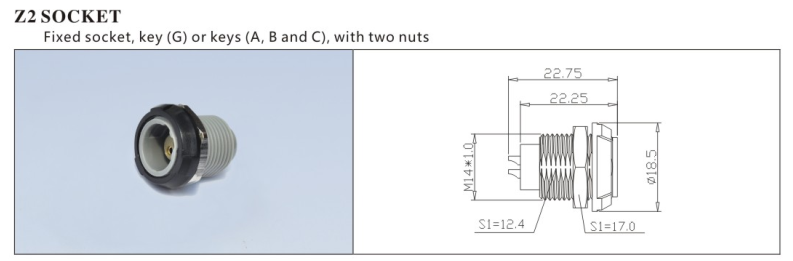

Dimensions and Parameters

Black Nut 1P 6 Pin Electrical Connector Round Type 100 G Shock Resistance

MOCO P / N	1PZ2G06CLLN
Insert	6 low voltage
Configuration	Brass (gold plated)
Insulator	PPS
Endurance (Shell)	5000 mating cycles
Temp (min)	-40 deg
Temp (max)	200 deg C
Humidity (max)	<=95% [at 60 deg C / 140 F]
Vibration	15 g [10 Hz - 2000 Hz]
Shock Resistance	100 g [ 6 ms]
Salt Spray Corrosion	>144 hr
IP Rating	50
Shielding (min)	75 dB (10 MHz)
P op (max)	60 bar (870 psi)

We also can provide OEM & ODM services. We can produce goods according to customers' requirements. Just call us.

We also provide cable assemblies service.

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
